Subwoofers produce very low frequency sounds also known as bass. Subwoofers can be wired with either single- or dual-voice coils. The coil wiring in the subwoofer works with current sent from the amplifier to produce sound.
Albert camus the stranger free pdf. Dual voice coil subwoofers, on the other hand, have two different coils wrapped entirely around the former and carry two positive and two negative terminals. Ohm Levels One of the most critical advantages the dual voice coil subwoofers has over a single coil is the flexibility when handling different ohm levels. 4 ohm dual voice coil subwoofer wiring diagram inspirational 2 ohm4 subwoofer wiring diagrams how to wire your subs 4 ohm dvc diagram 4 ohm dual voice coil subwoofer wiring diagram inspirational 2 ohm4 qpower q dual holes subwoofer box mono wiring diagram basic electronics 3000 subs.
Single-Voice Coil
Single-voice coils will offer one set of negative and positive terminals. These terminals are used to connect audio equipment to the subwoofer. There is a single coil wrapped around the speaker cylinder. Single-voice coil subwoofers can only be wired for the ohm (the amount of current the speaker will draw) specified.
Dual-Voice Coil

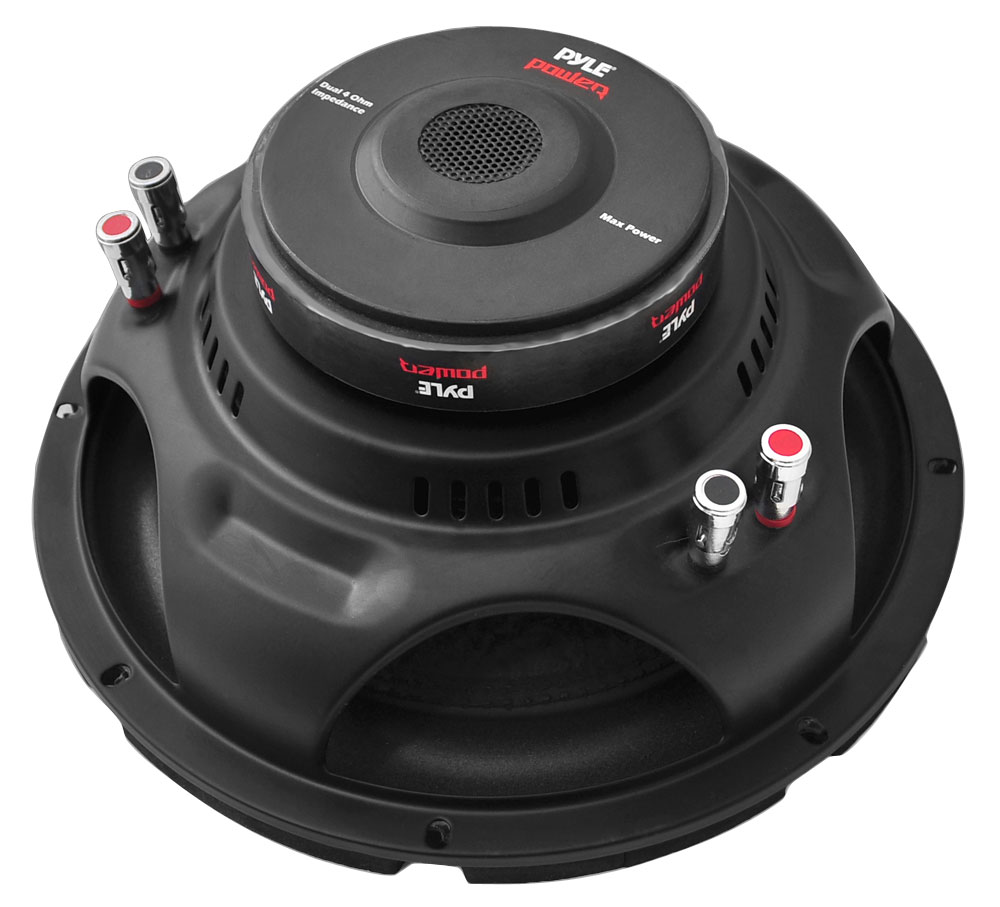

Dual-voice coils offer two sets of negative and positive terminals. Two coils are wrapped around the speaker cylinder in a dual-voice coil. Dual-voice has multiple wiring options such as parallel, series and independent wiring. Parallel wiring produces the most output. Series wiring is using one amplifier with several subwoofers; independent wiring is using one coil per channel.
Compared
The prominent difference between single-voice coil subwoofers and dual-voice subwoofers is that the dual-voice have more wiring options. In most cases, single- and dual-voice subwoofers offer the same frequency, power and box specifications.
